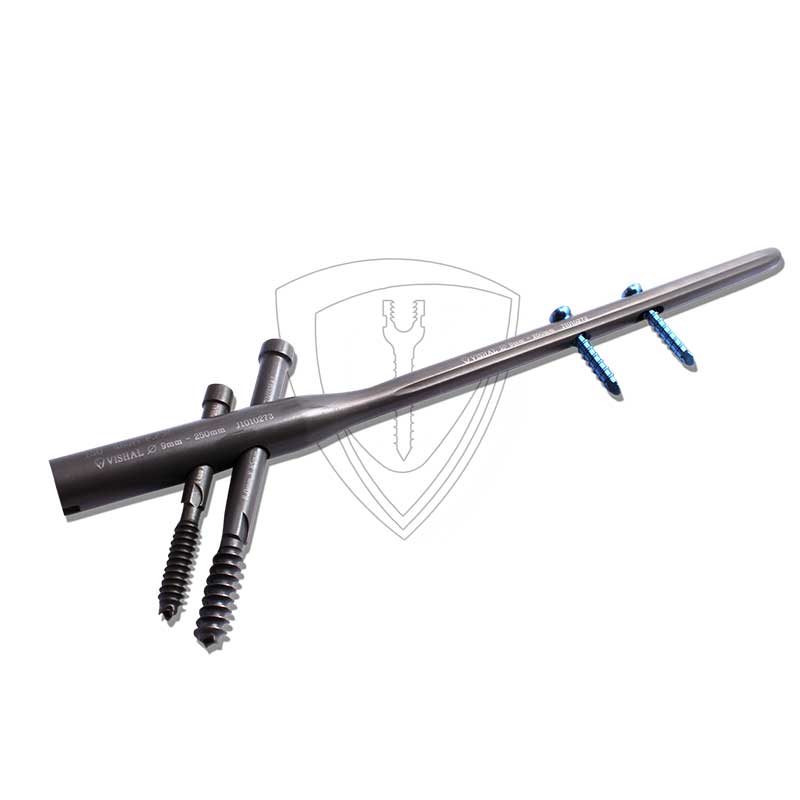

Interlocking Short PFN Nail
Interlocking Short PFN Nail
SPECIFED FOR : Femur Bone
| Product code |
S.S:- NS.19.09 - NS.22.13 Titanium:- TNS.19.09 - TNS.22.13 |
| Material | Stainless Steel Titanium |
| Size | Ø9, Ø10, Ø11mm……..Ø13mm Length:- 180mm & 250mm Angle 130°,135° |
Specification
- Nail is available in both-Titanium & Stainless steel.
- PFN Nail features Proximal 6.4mm and 8.0mm Angled Hole and Distal compression holes and round holes that accepts 4.9mm Inter locking screws.
- PFN nail are avalible in angles 130°,135° & Dia. 09mm,10mm,11mm,12mm,13mm & Length 180mm,250mm.
Indications for use
- Used for Trochanteric fractures and Subtroch of the Femur Bone.
- Choice of two round holes for angled locking hole secures the rotational and axial stability. A dynamic hole allows axial suitable dynamisation.
- Flexible distal nail end minimizes stress concentration & mediolateral angle of pfn nail is 5°.
